K-Bot Modular Head

Early prototype of the K-Bot has a raspberry pi in the head, but will be changed out to a nvidia board prior to shipment. For testing with the prototype units, the raspberry pi has a default raspberry os. Once powered on you should see the GUI pop up on the head screen and plug in usb mouse and keyboard using the usb c port in the back.

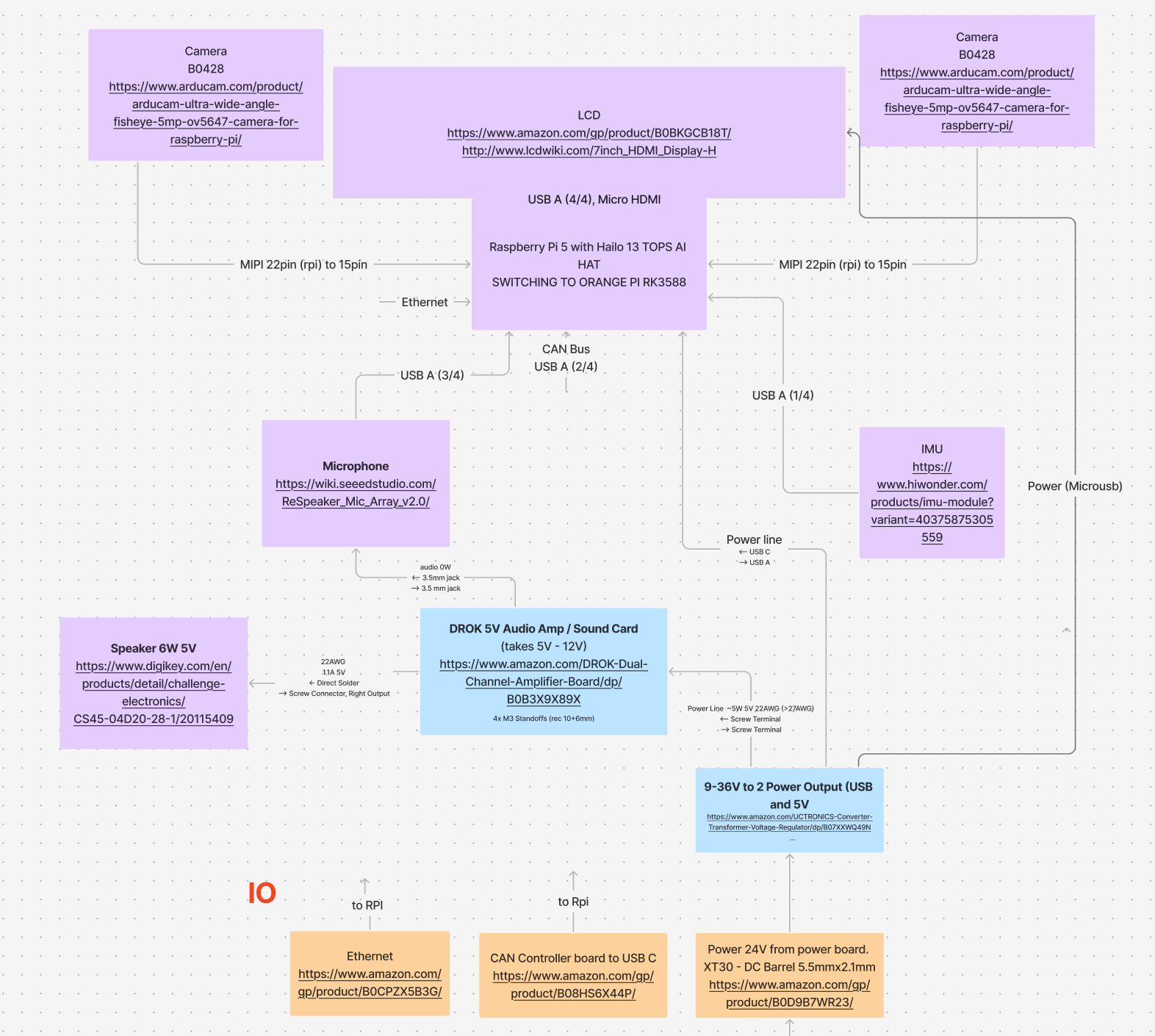

The prototype K-Bot head has the following components:

1. Display, 7 inch
2. Camera, 5MP, 220FOV
3. IMU
4. Microphone
5. Audio Amp
6. Speaker
7. Step-Down

Connectors

1. Barrel Jack for power (24V)
2. Panel Mounted Ethernet
3. Panel Mounted USB C
